High-Temperature Corrosion Resistant Ceramic Coating

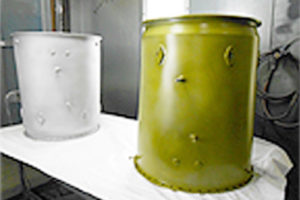

High-Temperature Corrosion Resistant Ceramic Coating[click to enlarge]
High-Temperature Corrosion Resistant Ceramic Coating

Aware of Imagineering's expertise in metal finishing, a client in the aerospace industry contacted us to apply a ceramic composite coating for their alloy steel aircraft engine components. We prepared the surface of the parts mechanically and chemically and applied the proprietary ceramic composite coating system and a corrosion protective aluminum-rich organic topcoat sealer. The coating was then heat cured at 1000¨¬F.

Needing to withstand high-temperatures and be anti-oxidizing and corrosion resistant, our thermally-fused ceramic composite coating was heat-oxidation resistance at temperatures of ¡Ã 1600¨¬ F. It combined thermal stability, excellent adhesion and hardness, good flexibility, and withstands high temperature cycling and corrosive salt environments. We verified the coatings by testing for thickness, curing, adhesion, and salt spray resistance. On this project we worked to tolerances of .0005" and met various aerospace prime specifications.

This high-temperature corrosion resistant ceramic coating project showcased our ability to provide our client with high-quality components that exceed expectations. Please contact us to learn more about our products and services.

REQUEST FOR QUOTE


Highlights of this High-Temperature Corrosion Resistant Ceramic Coating Project

Project Description

High-Temperature Anti-Oxidizing Corrosion Resistant Ceramic Composite Coating for Aircraft Engine Components.

Because of its high temperature capabilities, it offers excellent protection when exposed to cyclic high temperature and corrosive salt environments, continuing to provide sacrificial properties at temperatures to 1150¨¬F. Although a ceramic coating, it combines thermal stability, excellent adhesion and hardness, along with good flexibility... a property not found in most ceramic coatings. As mentioned above it offers salt corrosive protection to 1150¨¬F. At about 1200¨¬F, the aluminum oxidizes to a point where it no longer provides its excellent sacrificial properties; however, it will continue to offer excellent heat oxidation continuously to 1600¨¬F and in some cases, depending on metal substrate, has offered heat oxidation protection to 2200¨¬F.

Tests have been conducted using low carbon steel alloys. There was no loss of weight after several weeks of continuous exposure at 1000¨¬F. After exposure to 5% salt spray for 1000 hours, there was no evidence of corrosion. Further, the coating offers superb thermal shock resistance. The coated metal will not crack, spall, or fail after shocking from 1100¨¬F to room temperature repeatedly.

The coating has properties vastly superior to those of organic paints and coatings. Specifically, the film offers greater protective properties in combination of heat, weathering, corrosion, and oxidation resistance than organic paints and is lighter in weight and more flexible than most ceramic coatings.

Capabilities Applied/Processes
Mechanical and chemical surface preparation
Proprietary ceramic composite coating system with corrosion protective organic topcoat sealer
Heat cured at 1000 F.
Tightest Tolerances
.0005"
Material of Parts
Alloy Steel
Materials of Coating
Thermally-fused Ceramic composite
Aluminum-rich organic topcoat
Benefits of Coating
Heat Oxidation resistance at temperatures >/= 1600¨¬F.
In process testing/inspection performed
Thickness Test, Cure Test, Salt Spray Test, Adhesion Test
Industry for Use
Aerospace, Military, Commercial
Standards Met
Various Aerospace Prime Specifications
Product Name
Alseal 518, Alseal 598
